Cudy BE3600 Gigabit Wi-Fi 7 Router (WR3600)

Cudy WR3600 Wireless Router – Dual-band 2.4GHz and 5GHz Gigabit Ethernet Black

The Cudy BE3600 Gigabit Wi-Fi 7 Router marks a bold leap into the future of wireless networking. Engineered for modern digital demands, this high-performance router delivers blazing-fast speeds, unparalleled device capacity, and next-gen efficiency—all within a sleek, dual-purpose form factor suitable for both desktop and wall-mounted installations.

Harnessing the power of Wi-Fi 7 (802.11be), the Cudy BE3600 Gigabit Wi-Fi 7 Router pushes throughput up to 3570 Mbps, powered by advanced features like Multi-Link Operation (MLO), 160 MHz channel width, and 4K-QAM modulation. Whether streaming in 4K, dominating online multiplayer games, or managing a fully connected smart home, the Cudy BE3600 Gigabit Wi-Fi 7 Router ensures low latency, consistent bandwidth, and rock-solid connectivity.

At its core is a robust 2.0 GHz quad-core Broadcom ARM Cortex-A7 CPU, paired with 512 MB RAM and 128 MB flash memory, providing the muscle needed for simultaneous high-load tasks. With support for up to 512 devices, it’s built for the bandwidth-hungry home or office.

Features:

• Wi-Fi 7 speeds up to 3570 Mbps with 160 MHz channels
• Multi-Link Operation (MLO) for ultra-low latency and seamless handoffs
• 2.0 GHz quad-core processor ensures fast, stable performance
• Connect up to 512 devices across dual bands
• MU-MIMO and OFDMA for efficient multi-user throughput
• Active beamforming with high-gain fixed antennas for wider coverage
• Full suite of VPN protocols, including WireGuard and OpenVPN
• WPA3 security and guest network options enhance data protection
• Gigabit Ethernet ports (1 WAN + 4 LAN) for wired flexibility
• Desktop and wall-mountable design with intuitive app and web UI

Specifications:

Performance

Wi-Fi Standard: IEEE 802.11be (Wi-Fi 7)

Total Bandwidth: Up to 3570 Mbps

• 5 GHz: 2882 Mbps
• 2.4 GHz: 688 Mbps

Coverage: Up to 130 m²

Maximum Range: 220 m

Max Devices: 512 (Recommended: up to 200)

Hardware

CPU: 2.0 GHz Quad-Core Broadcom ARM Cortex-A7

RAM: 512 MB DDR3L

Flash: 128 MB NAND

Antennas: 4× Fixed High-Gain Antennas

• 5 GHz: Max 5.5 dBi
• 2.4 GHz: Max 5.4 dBi

Connectivity & Ports

• RJ45 Gigabit Ports: 5 (1 WAN + 4 LAN)
• Power Supply: 12V/1A DC
• Max Power: 9W
• Buttons: WPS, Reset
• LED Indicators: Power, Internet, WAN, LAN, 2.4 GHz, 5 GHz

Wireless & Network Features

• Wi-Fi Efficiency: MU-MIMO, OFDMA, BSS Colour, Preamble Puncturing
• Security: WPA/WPA2/WPA3
• VPN Support: WireGuard, OpenVPN, IPsec, PPTP, L2TP, Zerotier
• Guest Network: Separate 2.4 GHz & 5 GHz
• Operation Modes: Router, Access Point (future: Extender, WISP, Client)
• QoS: Per-user rate limiting
• IP Versions: IPv4/IPv6 Support
• VLAN, IPTV, IGMP, Port Forwarding, DMZ
• Application Layer Gateway: IPSec, FTP, SIP, etc.

Management

• Local Control Method: Cudy App & Web Interface (Local & Remote)
• Firmware Updates: OTA, Web UI
• Diagnostics: Ping, Traceroute, NSLookup
• Parental Controls: Domain/IP Filtering, Time Scheduling
• DNS Options: DNS over TLS, Rebind Protection
• Supported Providers: Cloudflare, Google, Quad9

Physical & Environmental

• Dimensions: 18.33 × 10.9 × 3.8 cm
• Antenna Length: 17.5 cm
• Weight: 333.5 g
• Install: Desktop / Wall-mount
• Operating Temp: 0 ℃ to 40 ℃
• Storage Temp: -40 ℃ to 70 ℃
• Humidity: 10%–90% operating, 5%–95% storage
• Certifications: FCC, CE

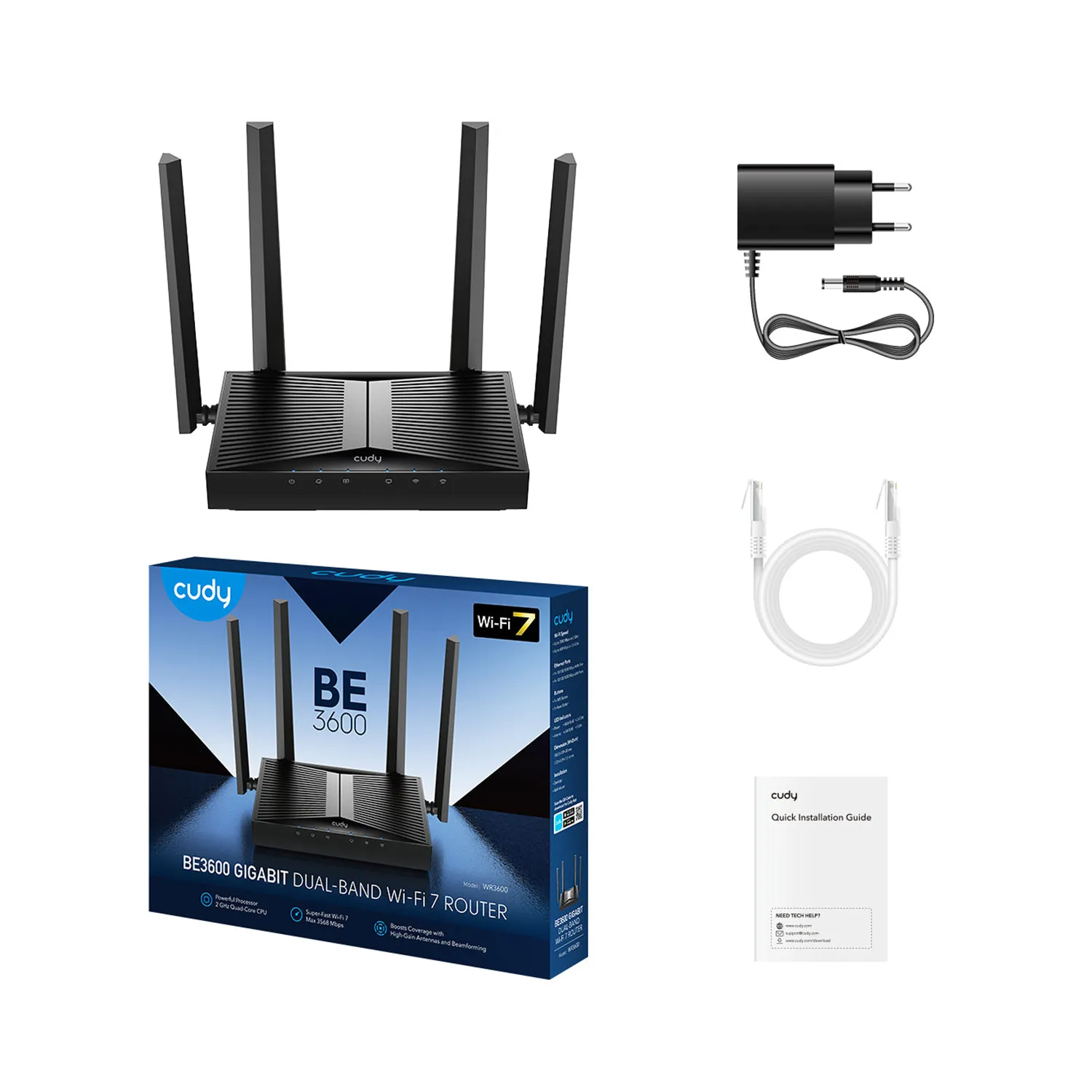

What’s in the Box:

• Cudy BE3600 Gigabit Wi-Fi 7 Router (WR3600) x1
• Power Adapter (12V/1A DC) x1
• RJ45 Ethernet Cable x1
• Quick Installation Guide x1
