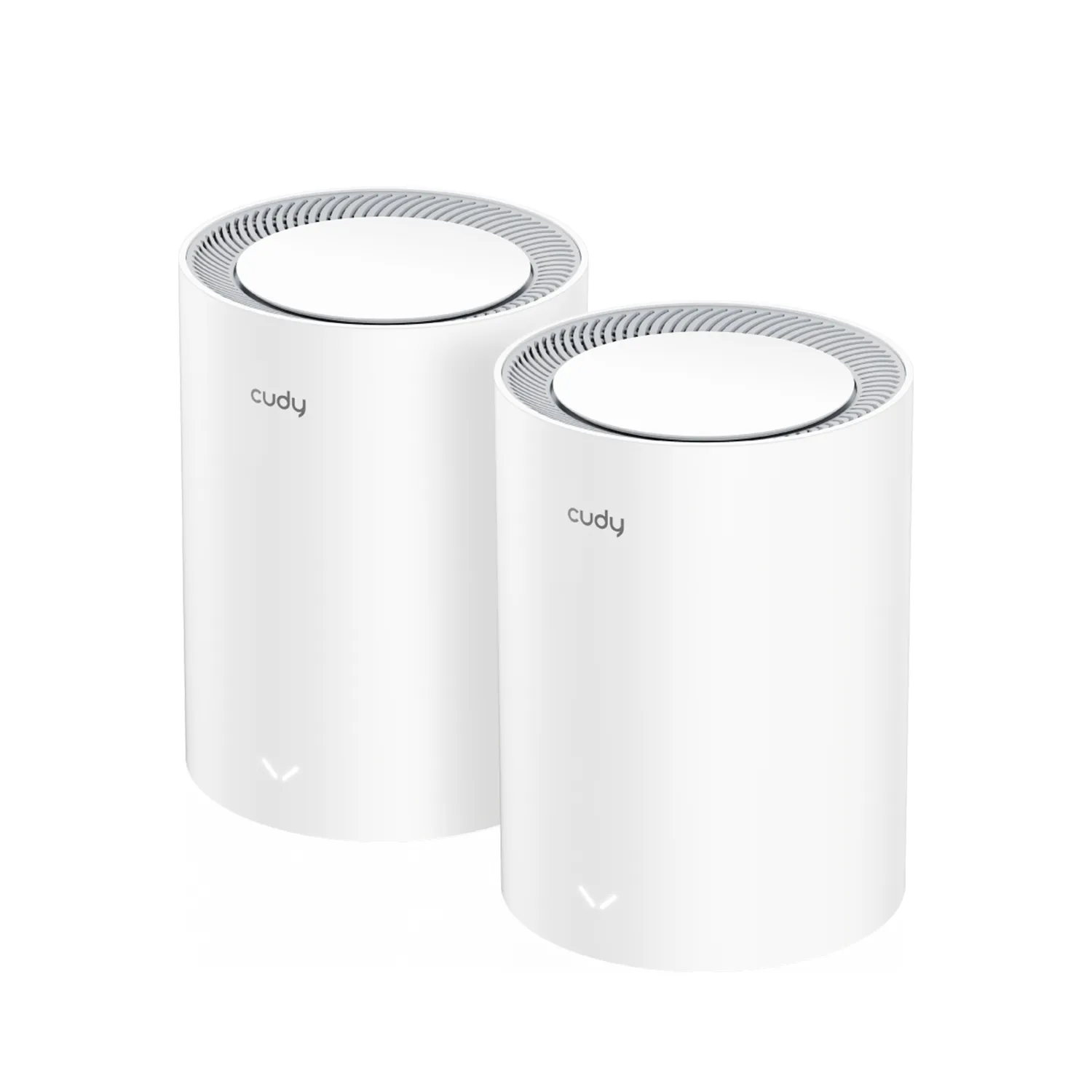

Cudy BE3600 Gigabit Mesh Wi-Fi 7 System | 2-Pack

Cudy M3600(2-Pack) BE3600 Dual-band Wi-Fi 7 Mesh Sytem White

Features

A dual-band WiFi 7 router with an aggregate of 3.6 Gbps speed and three Gigabit ports, catering to large home with Gigabit Internet access.

• 4-Stream Dual-band Wi-Fi 7
• 2882 Mbps + 688 Mbps Wi-Fi
• 3x Gigabit Ethernet Ports
• Up to 200 Connected Devices
• Cudy Mesh, VPN Server and Client
• Cudy App, Cloud Control

Technical Specification

Product: Cudy M3600 BE3600 Dual-band Wi-Fi 7 Mesh Sytem 2-Pack

CPU: 2.0 GHz Quad-Core, ARM Cortex-A7

Flash/ROM: 128 MB (1 Gbit) NAND

DDR/RAM: 512 MB (4 Gbit) DDR3L

Interfaces per node: 3x Gigabit RJ45 Ports (Please Note: 1x WAN port, the rest are LAN ports)

5 GHz Wi-Fi Speed: 2882 Mbps

2.4 GHz Wi-Fi Speed: 688 Mbps

5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)

2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)

Wi-Fi Antennas: 4x Internal

5 GHz Antenna Gain: Max 5.5dBi

2.4 GHz Antenna Gain: Max 5.4dBi

FEM or PA/LNA

• 5 GHz: 2× External
• 2.4 GHz: 2× Internal

Beamforming: True

Range Performance: Max 220 m (722 ft)

Indoor Coverage Reference

•  1 Pack: 90 m² (970 sq ft)
•  2 Pack: 200 m² (2100 sq ft)
•  3 Pack: 270 m² (2900 sq ft)
  Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of three obstacles to each room.

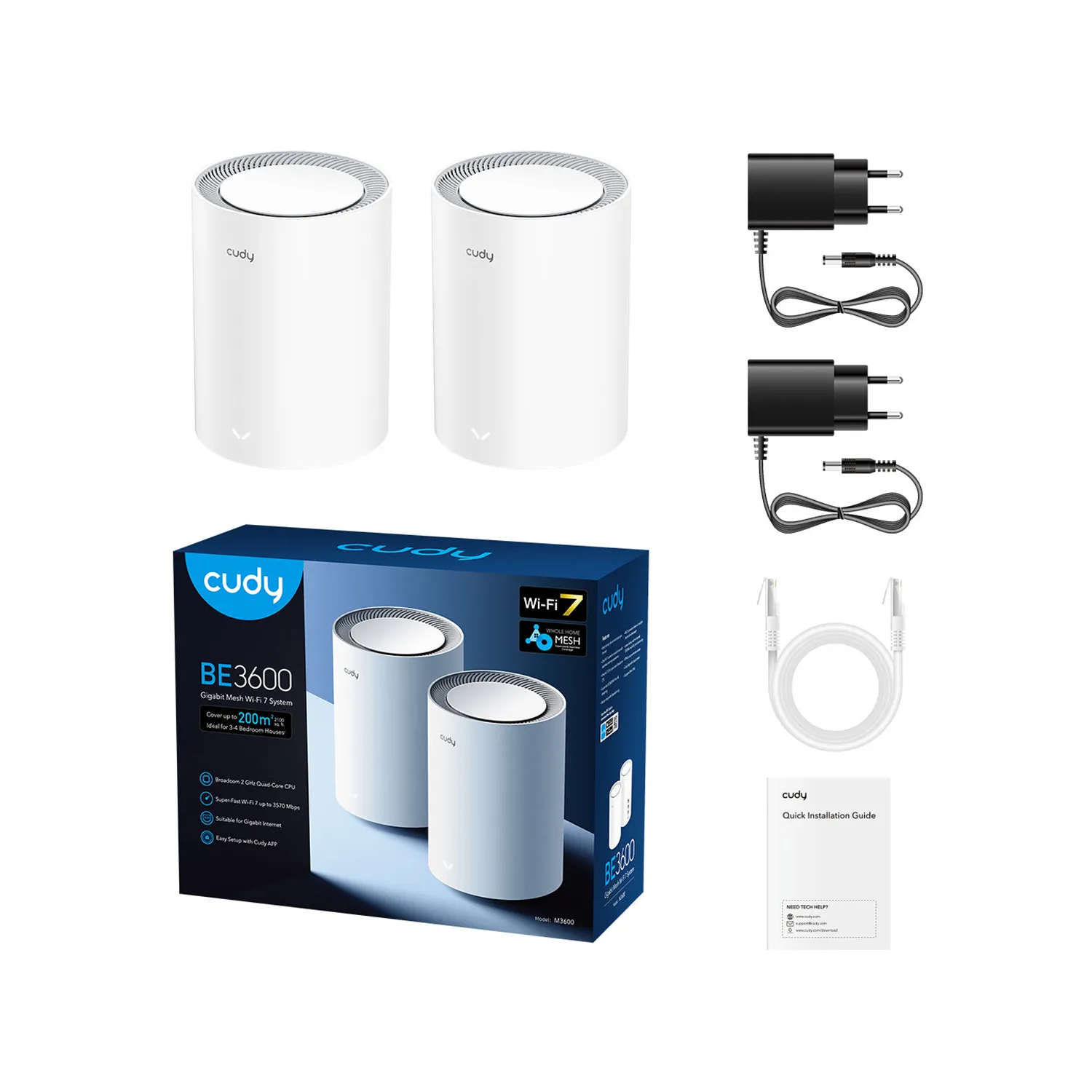

Package Content

• 2x M3600
• 2x Power Adapter
• 1x Ethernet Cable
• 1x Installation Guide
